Plot All Item Characteristic Curves Overlaid from exametrika

Source: R/ICCtoTIC.R
plotICC_overlay_gg.Rd

This function takes exametrika IRT output as input and generates an overlay plot of all Item Characteristic Curves (ICC) using ggplot2. All item curves are displayed on a single graph for easy comparison.

Usage

plotICC_overlay_gg(
  data,
  items = NULL,
  xvariable = c(-4, 4),
  title = TRUE,
  colors = NULL,
  linetype = "solid",
  show_legend = TRUE,
  legend_position = "right"
)

Arguments

data

An object of class c("exametrika", "IRT") from exametrika::IRT().

items

Numeric vector specifying which items to plot. If NULL (default), all items are plotted.

xvariable

A numeric vector of length 2 specifying the range of the x-axis (ability). Default is c(-4, 4).

title

Logical or character. If TRUE (default), display an auto-generated title. If FALSE, no title. If a character string, use it as a custom title.

colors

Character vector of colors for each item. If NULL (default), a colorblind-friendly palette is used.

linetype

Character or numeric specifying the line type. Can be a single value for all items or a vector for each item. Default is "solid".

show_legend

Logical. If TRUE (default), display the legend.

legend_position

Character. Position of the legend. One of "right" (default), "top", "bottom", "left", "none".

Value

A single ggplot object showing all Item Characteristic Curves overlaid on one graph.

Details

This function is similar to calling plot(IRT_result, type = "IRF", overlay = TRUE) in the exametrika package, but returns a ggplot2 object that can be further customized.

The ICC is computed using the four-parameter logistic model: $$P(\theta) = c + \frac{d - c}{1 + \exp(-a(\theta - b))}$$

See also

plotICC_gg, plotIIC_gg

Examples

library(exametrika)
result <- IRT(J15S500, model = 3)
#> No ID column detected. All columns treated as response data. Sequential IDs (Student1, Student2, ...) were generated. Use id= parameter to specify the ID column explicitly.
#> No ID column detected. All columns treated as response data. Sequential IDs (Student1, Student2, ...) were generated. Use id= parameter to specify the ID column explicitly.
#>
iter 1 LogLik -3960.28
#>
iter 2 LogLik -3938.35
#>
iter 3 LogLik -3931.82
#>
iter 4 LogLik -3928.68
#>
iter 5 LogLik -3926.99
#>
iter 6 LogLik -3926.05
#>
iter 7 LogLik -3925.51
#>
iter 8 LogLik -3925.19
#>
iter 9 LogLik -3925.01
#>
iter 10 LogLik -3924.9
#>
iter 11 LogLik -3924.83
#>
iter 12 LogLik -3924.8
#>
iter 13 LogLik -3924.77

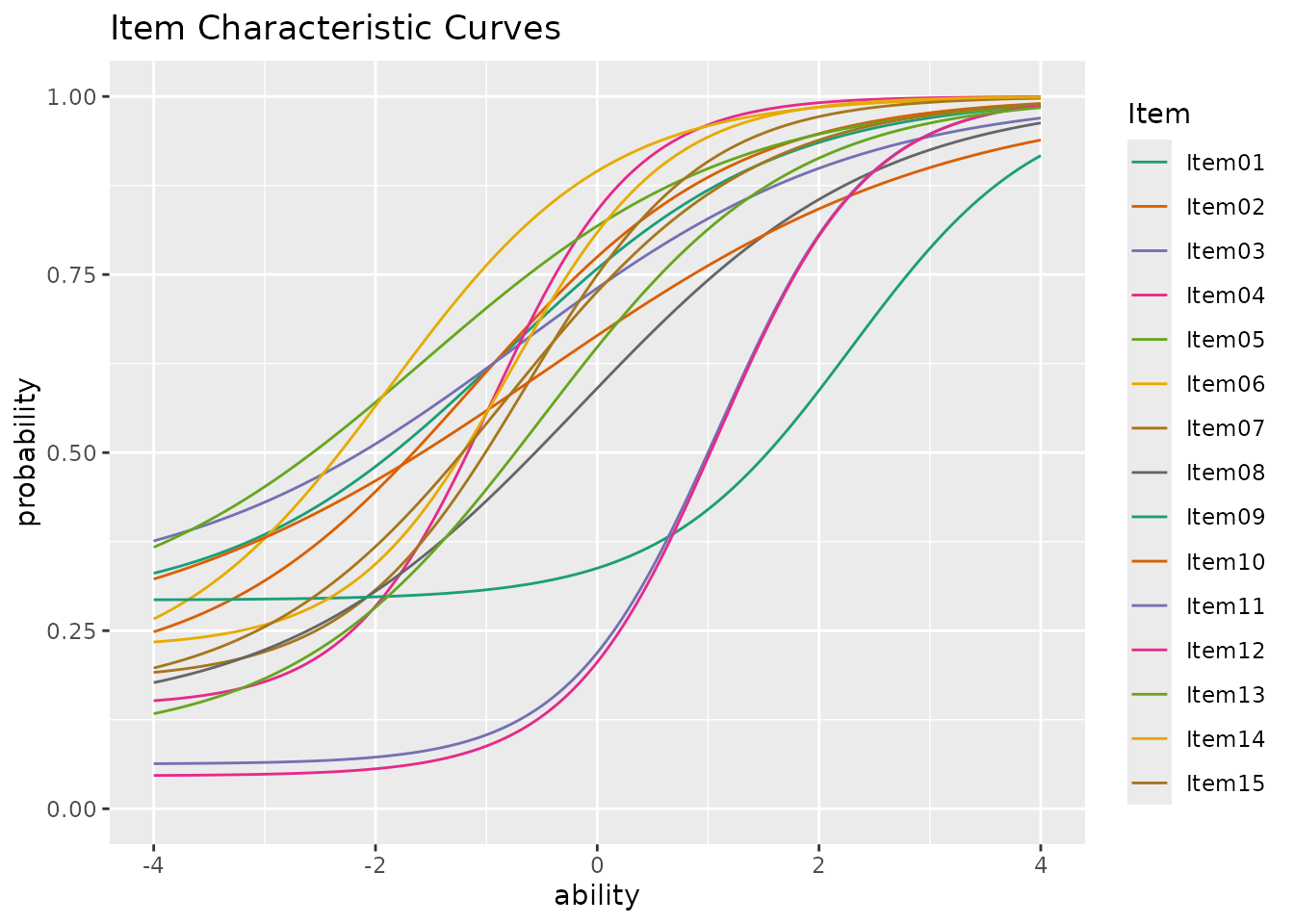

plotICC_overlay_gg(result) # All items

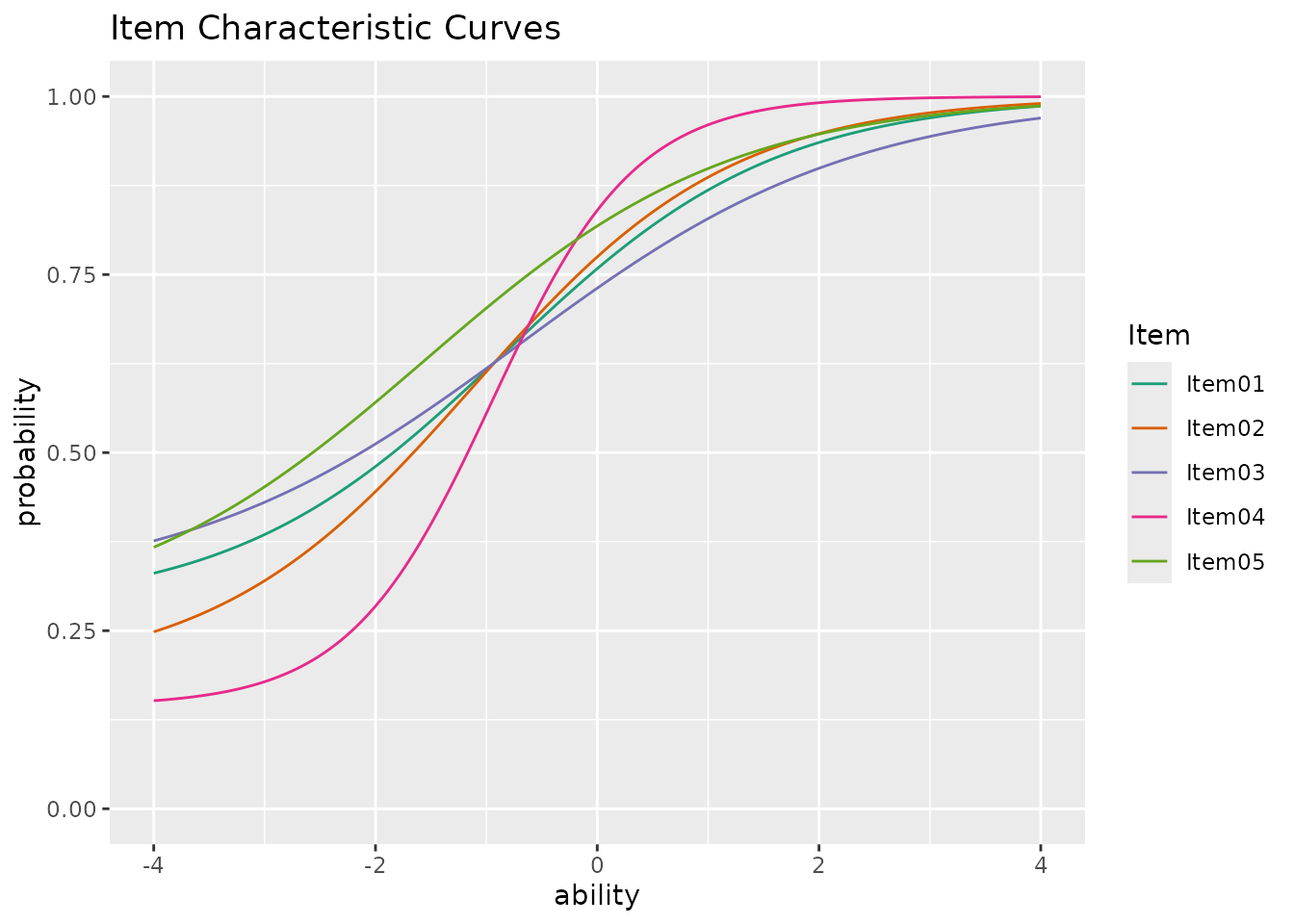

plotICC_overlay_gg(result, items = 1:5) # First 5 items only

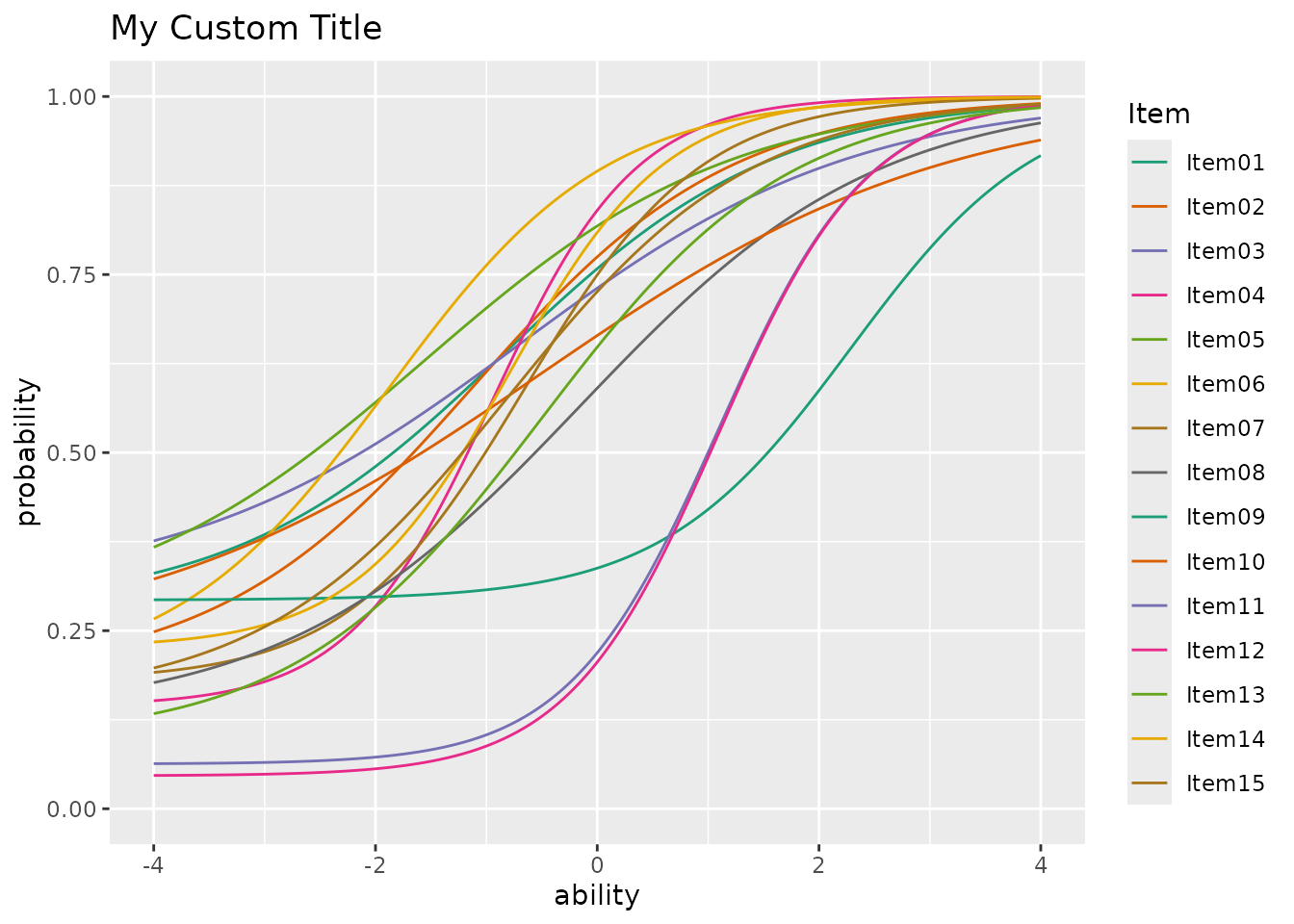

plotICC_overlay_gg(result, title = "My Custom Title", show_legend = TRUE)
