Plot Latent Rank Distribution (LRD) from exametrika

This function takes exametrika output as input and generates a Latent Rank Distribution (LRD) plot using ggplot2. LRD shows the number of students in each latent rank and the rank membership distribution.

Usage

plotLRD_gg(
  data,
  Num_Students = TRUE,
  title = TRUE,
  colors = NULL,
  linetype = "dashed",
  show_legend = FALSE,
  legend_position = "right"
)

Arguments

data: An object of class c("exametrika", "LRA"), c("exametrika", "Biclustering"), c("exametrika", "LDLRA"), or c("exametrika", "LDB"). If LCA or BINET output is provided, LCD will be plotted instead with a warning.
Num_Students: Logical. If TRUE (default), display the number of students on each bar.
title: Logical or character. If TRUE (default), display the auto-generated title. If FALSE, no title. If a character string, use it as a custom title.
colors: Character vector of length 2. First element is the bar fill color, second is the line/point color. If NULL (default), uses gray for bars and black for line/points.
linetype: Character or numeric specifying the line type for the frequency line. Default is "dashed".
show_legend: Logical. If TRUE, display the legend. Default is FALSE.
legend_position: Character. Position of the legend. One of "right" (default), "top", "bottom", "left", "none".

Value

A single ggplot object with dual y-axes showing both the student count and membership frequency.

Details

The Latent Rank Distribution shows how students are distributed across latent ranks. Unlike latent classes, ranks have an ordinal interpretation where higher ranks indicate higher ability levels.

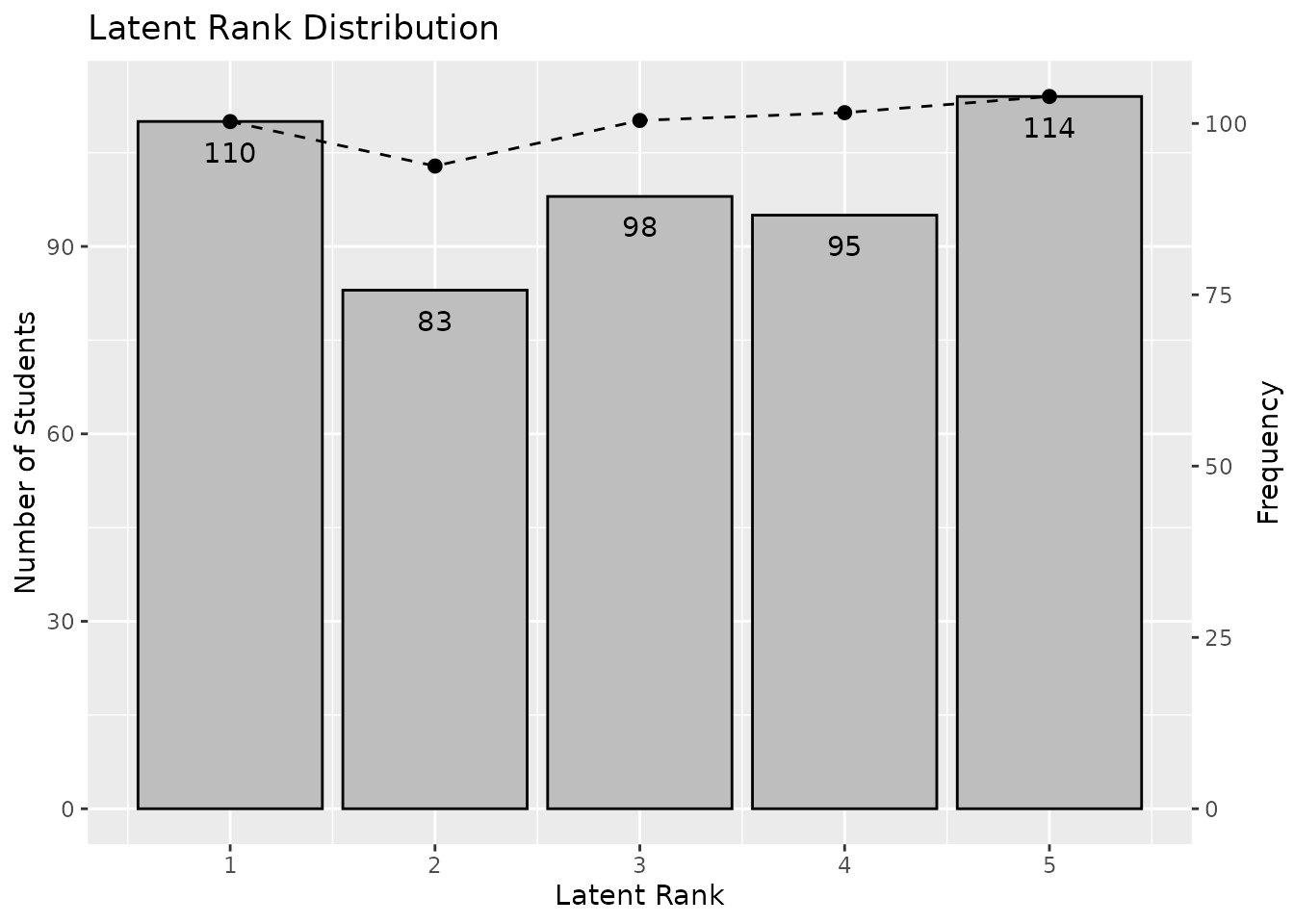

Examples

library(exametrika)
result <- LRA(J15S500, nrank = 5)
plot <- plotLRD_gg(result)
plot
